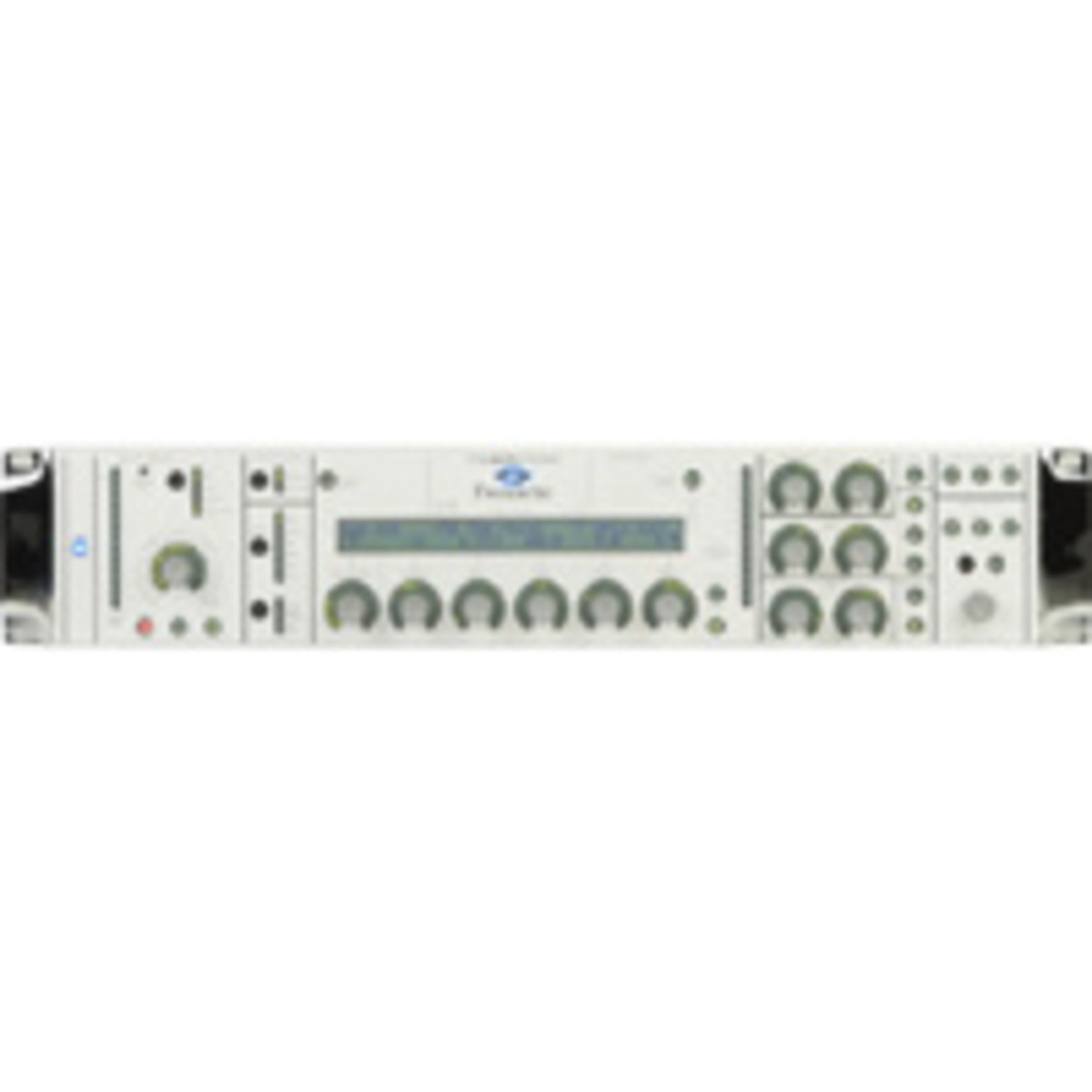

Focusrite Liquid Channel Channel-Strip

Ausführliche Beschreibung

The Liquid Channel transports classic front-end processing into the digital age, removing the need for endless patching and adding fluidity and reliability to the studio environment. Quite simply, The Liquid Channel is able to emulate a huge number of the world's finest mic-pres and compressors, inside a single 192kHz 2U device.

For More information Please see www.ffliquid.com

Converter performance

Sample rate: 44.1, 48, 88.2, 96, 176.4 and 192 kHz

Bit depth: 24-bit

ADC

SNR: 120 dB measured with 20 Hz/22 kHz bandpass A-weighted filter

Frequency response: ±0.05 dB between 20 Hz � 20 kHz

Maximum input level: +22 dBu

THD+N: 0.00035% (-109 dB)

DAC

Dynamic range: 116 dB measured with 20 Hz/22 kHz bandpass A-weighted filter

Frequency response: ±0.05 dB between 20 Hz � 20 kHz

Maximum output level: +22 dBu

THD+N: 0.0007% (-103 dB)

Jitter

Internal clock:
